Product Description

Description :

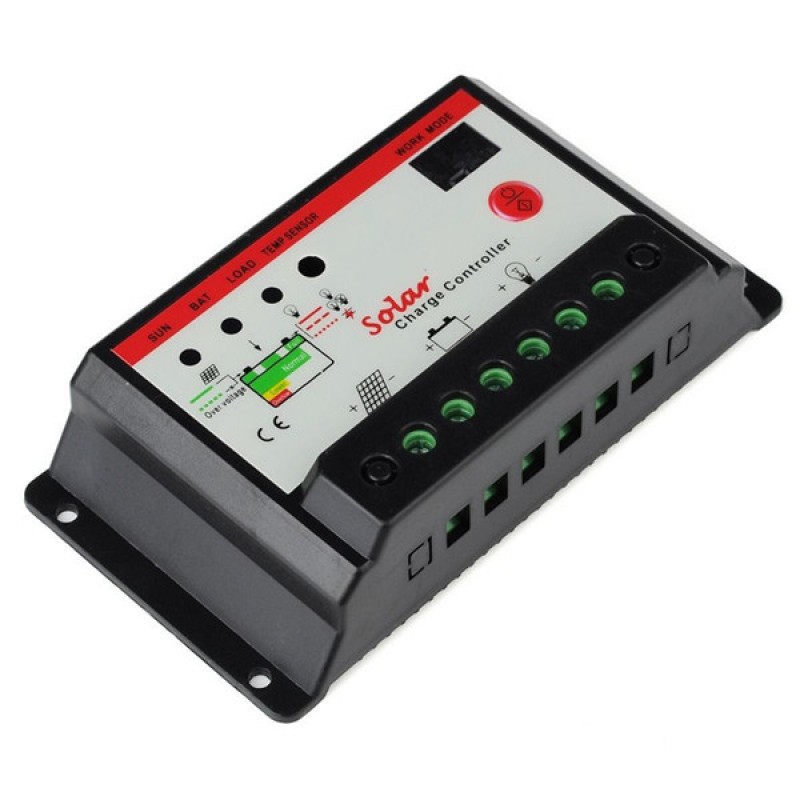

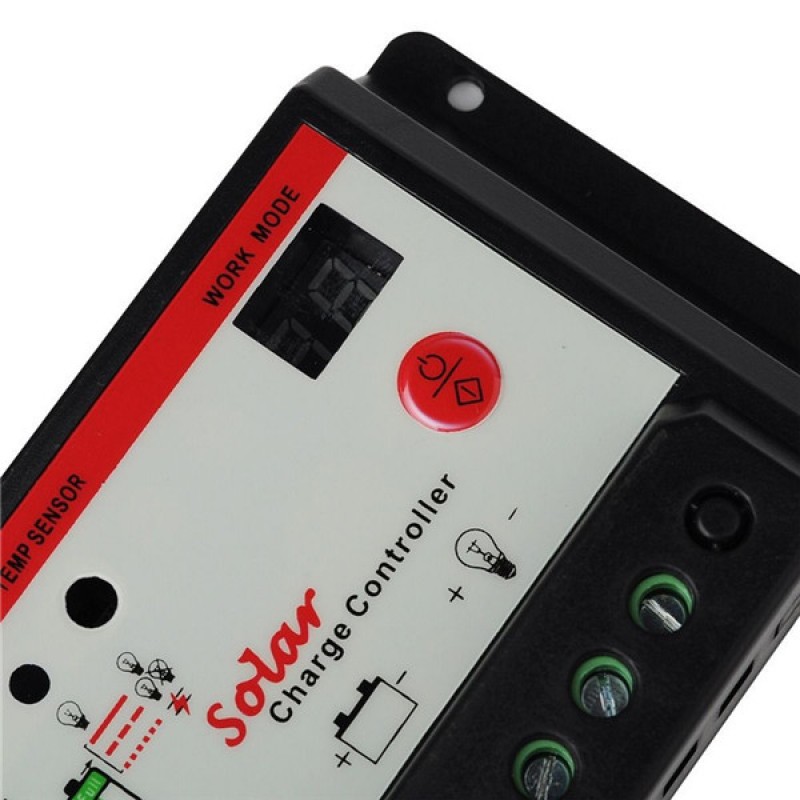

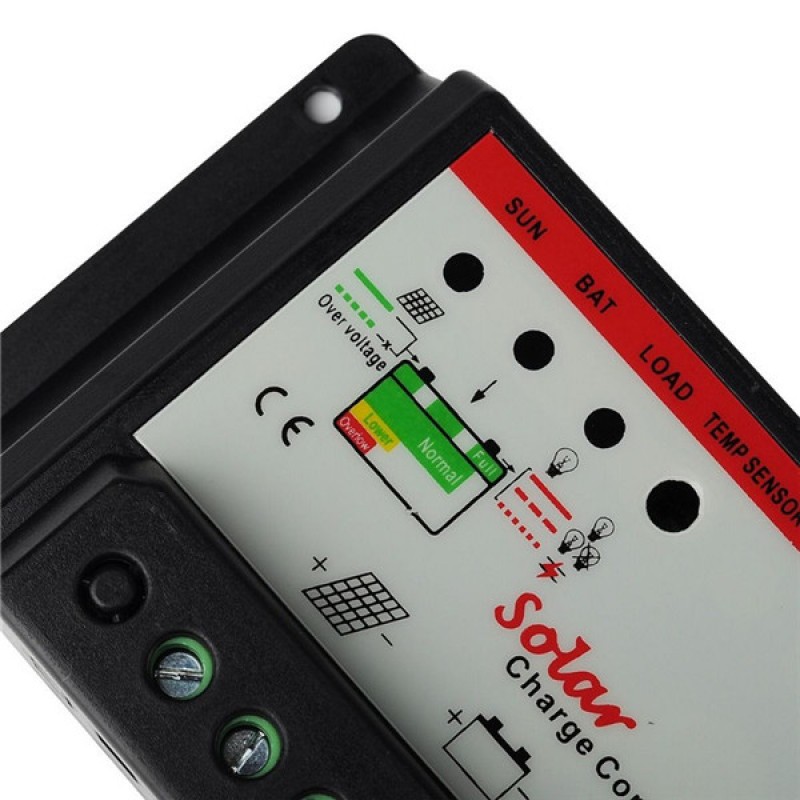

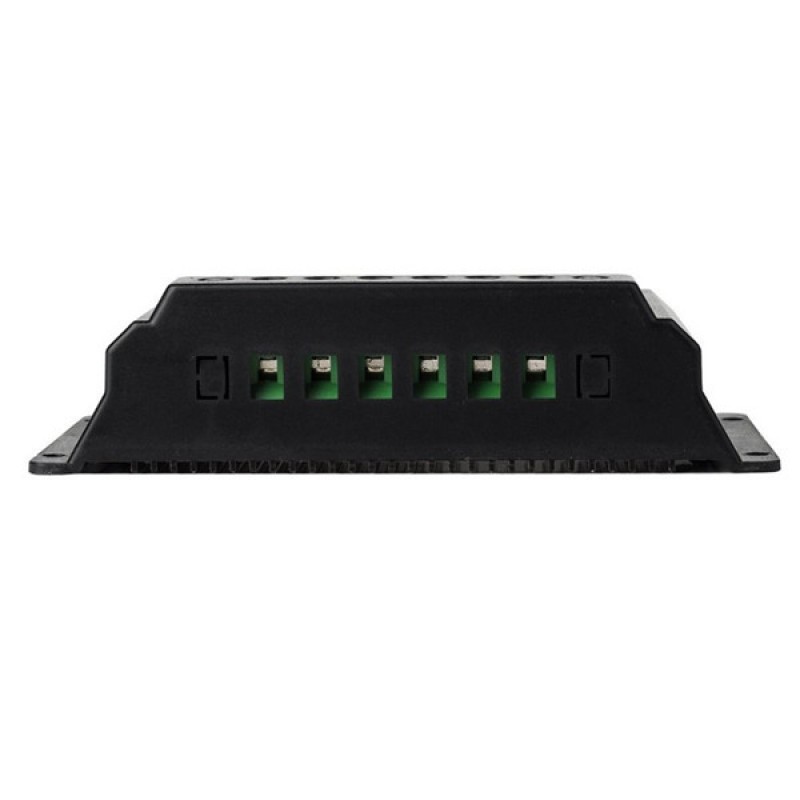

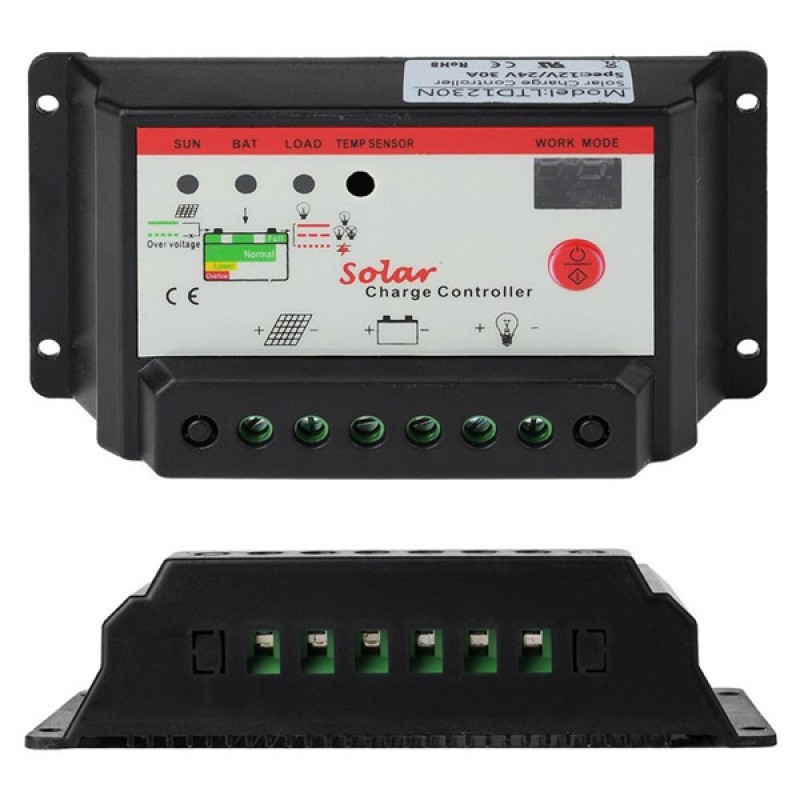

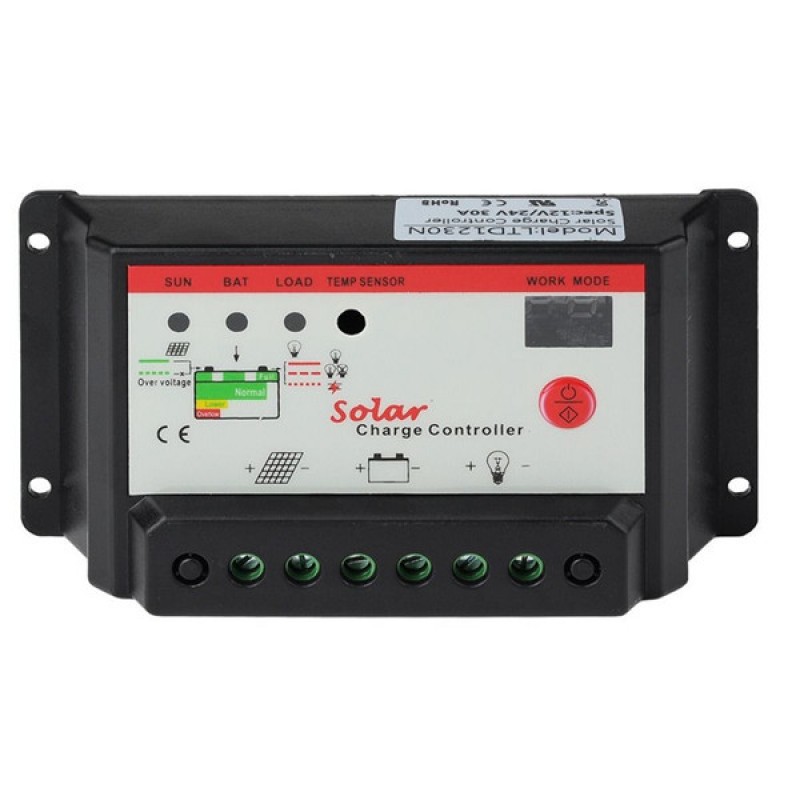

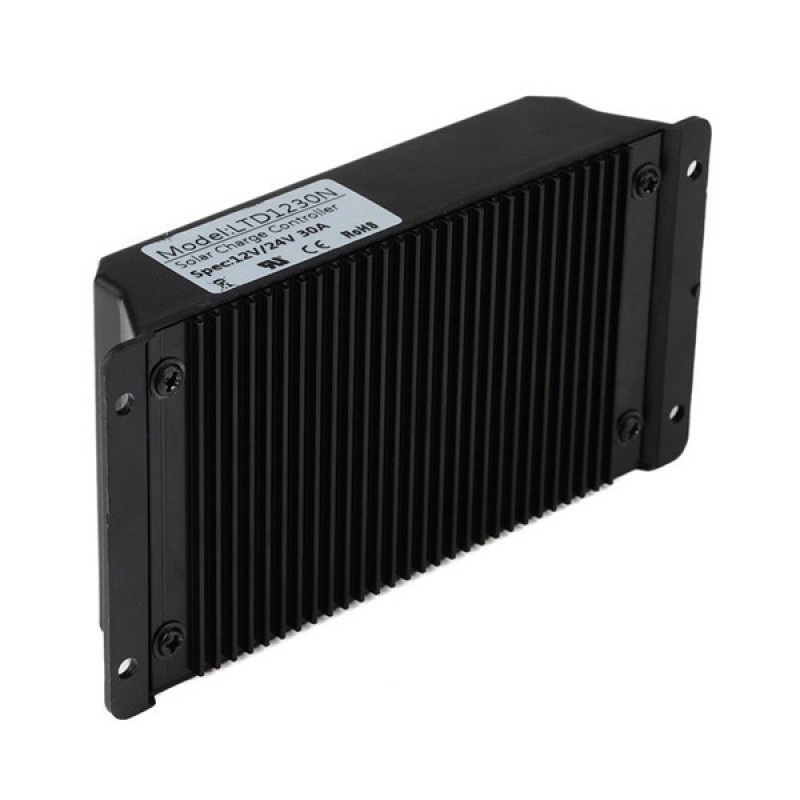

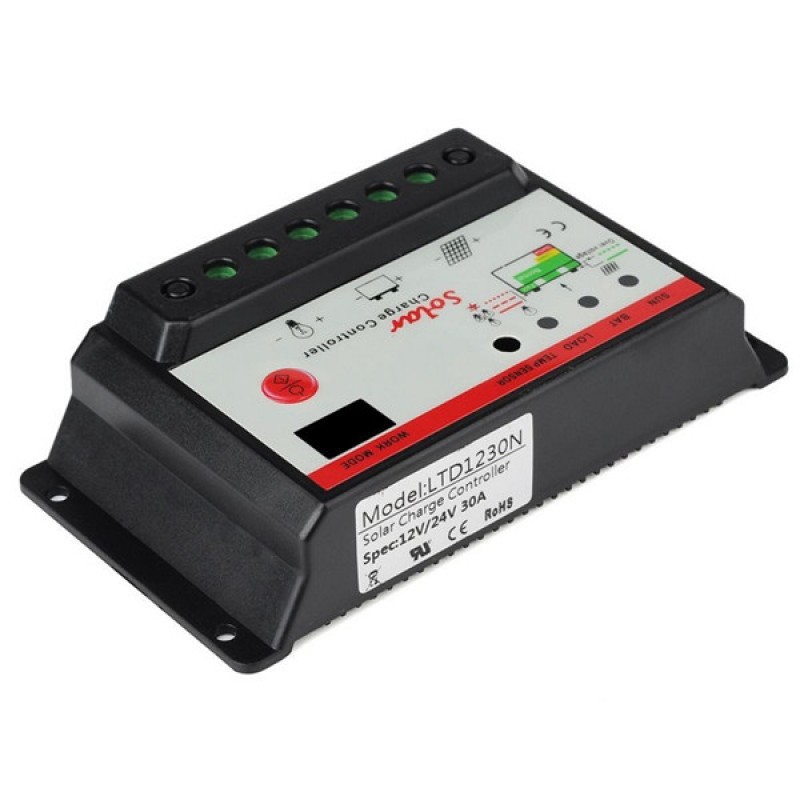

Intelligent 30A PWM Solar Panel Charge Controller Auto Battery Regulator 12V/24V

This item is a simply solar energy overcharge and over discharge protection controller, which is especially designed for the area with great sunlight. And, this controller is perfectly suitable for the 12V 24V control system and it is attached with USB5V/DC 12V or 24V output port, which can charge 5V mobile devices and 12V or 24V mobile devices and facilitate the use of intelligent devices and illumination, etc.

Featuers :

High charging efficiency, tandem PWM charging way, longer battery life.Over-load protection.Short circuit protection and Protect from the lighting strike.

Reserve discharging protection and Reserve-polarity protection.Under-voltage and overcharging  protection.12 / 24V self-adaptive, USB 5.0V mobile phone charging, and dual-way DC12/24V output.

Note : If the battery is 12V, then the output is DC 12V. If the battery is 24V, then the output is DC24V.

Specifications :

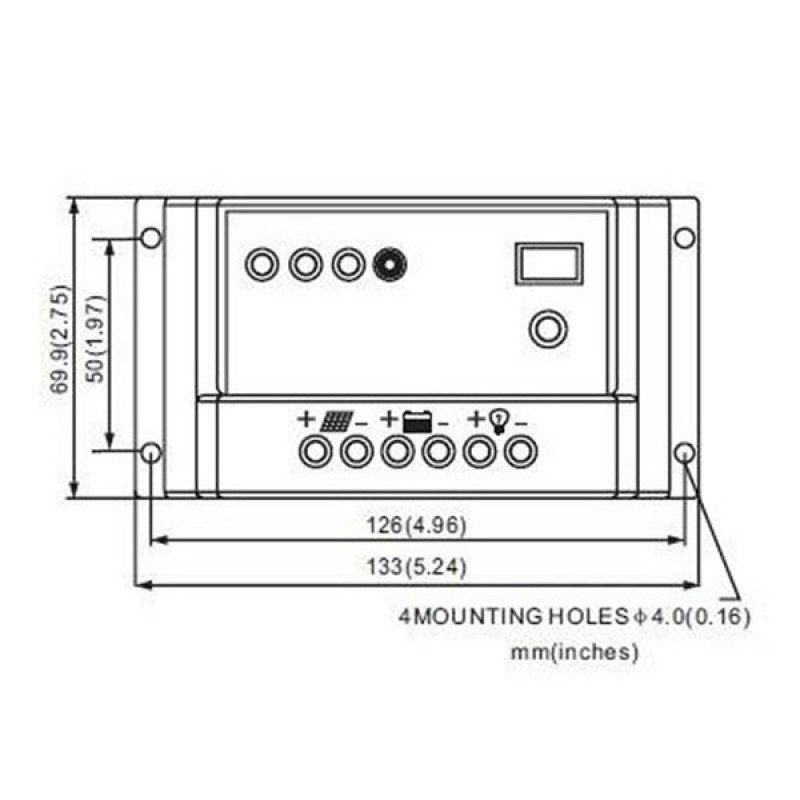

Size : 14 x 7.6 x 4cmPackage weight : 6.3oz/178gRated voltage : 12V / 24VVoltage of ending power supply : 10.8VRecovery voltage of power supply : 10.8VVoltage of ending charging : 14.7V or 29.4VRated charging current : 30AUSB output voltage : 5VUSB output current : 1ADC output voltage : 12V or 24VDC output current : 1ARated load current : 30A

Package Includes :

1 x Digital PWM 30A Solar Charge Controller1 x User manual
