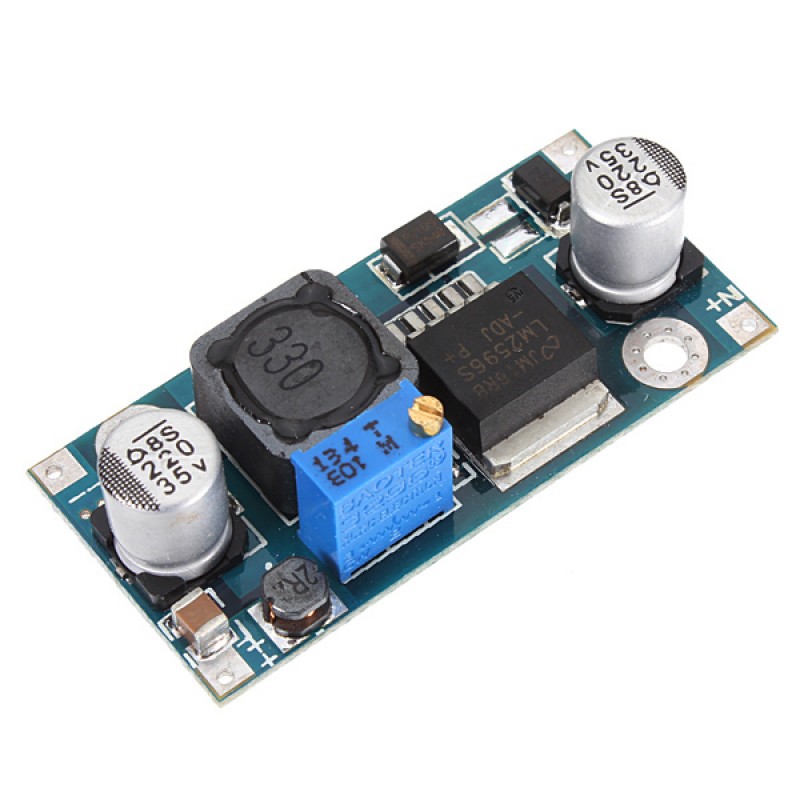

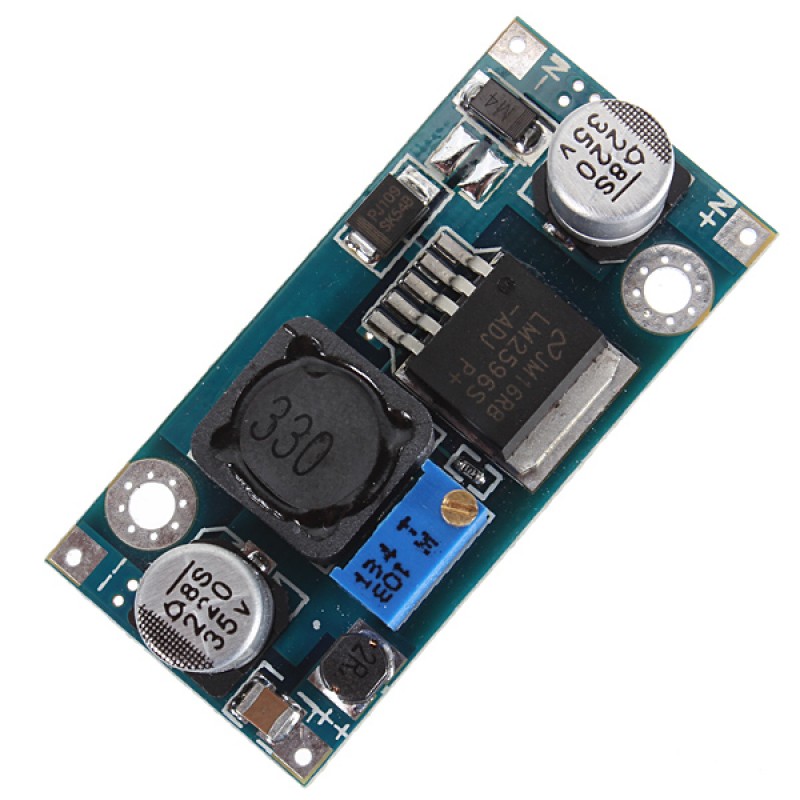

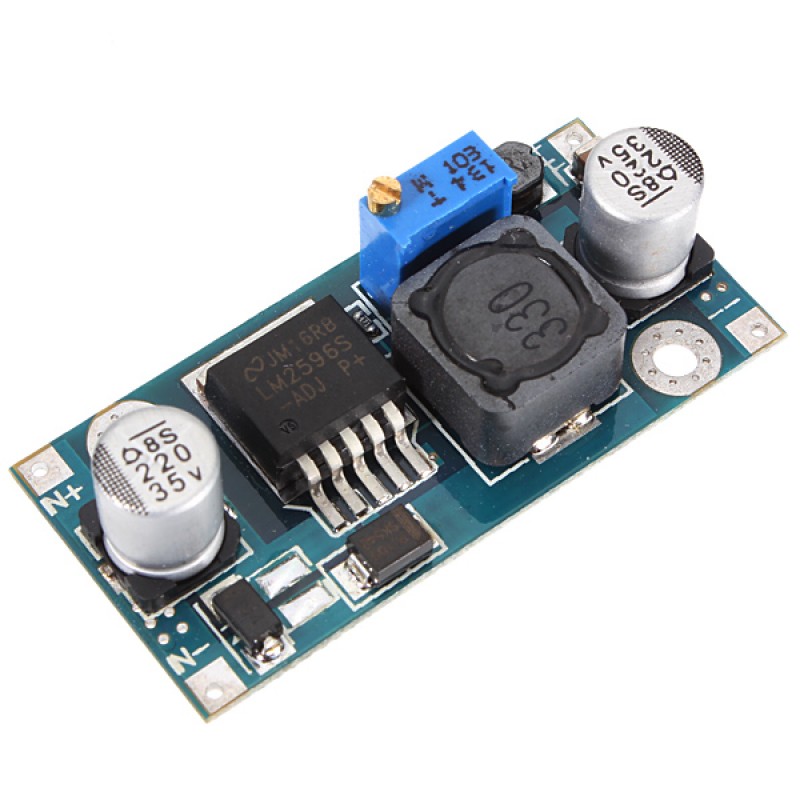

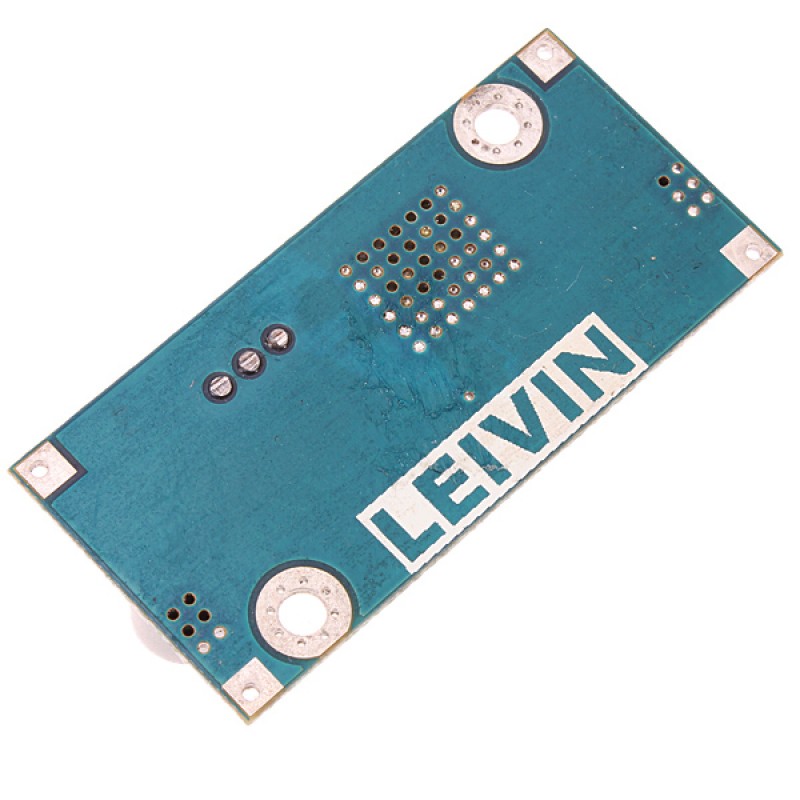

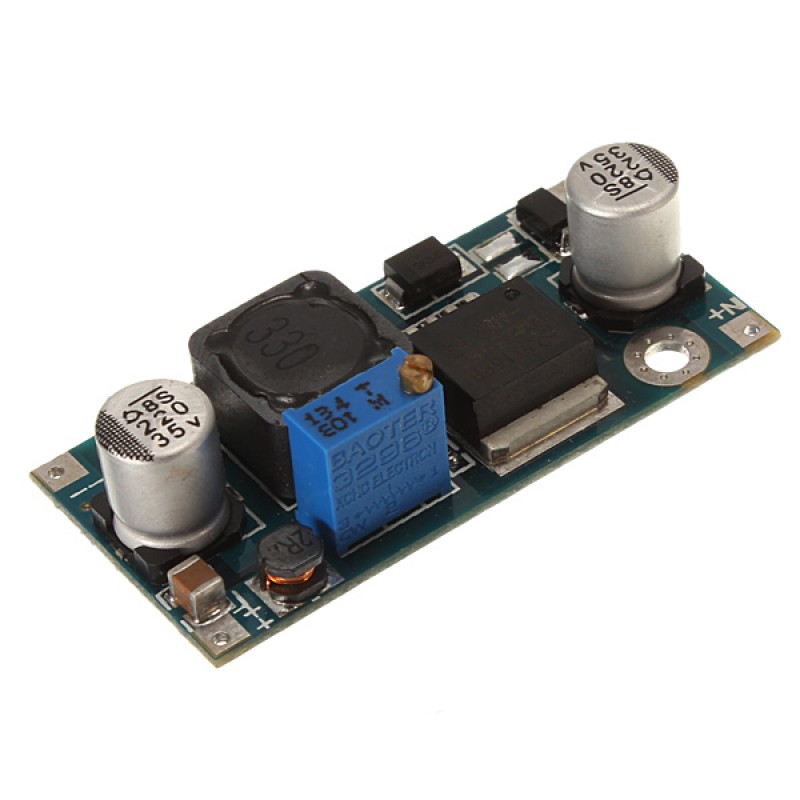

5Pcs LM2596 DC-DC Adjustable Step Down Power Supply Module
- $10.99
- Ex Tax: $10.99
- Product Code: trd034
- Availability: In Stock
Product Description
5Pcs LM2596 DC-DC Adjustable Step Down Power Supply Module
Description:
Input voltage: 4.5-35VOutput voltage: 1.5-35V(Adjustable)Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features:
Conversion Efficiency: Up to 92 (output voltage higher, the higher the efficiency)Switching Frequency: 150KHzRectifier: Non-Synchronous RectificationModule Properties: Non-isolated step-down module (buck)Short Circuit Protection: Current limiting, since the recoveryOperating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)Full load Temperature rise: 40Load Regulation: ± 0.5Voltage Regulation: ± 2.5Dynamic Response speed: 5 200uSDimension: 43*20*14mm (L*W*H)
Package Included:
5 x LM2596 DC-DC Step-down Module
