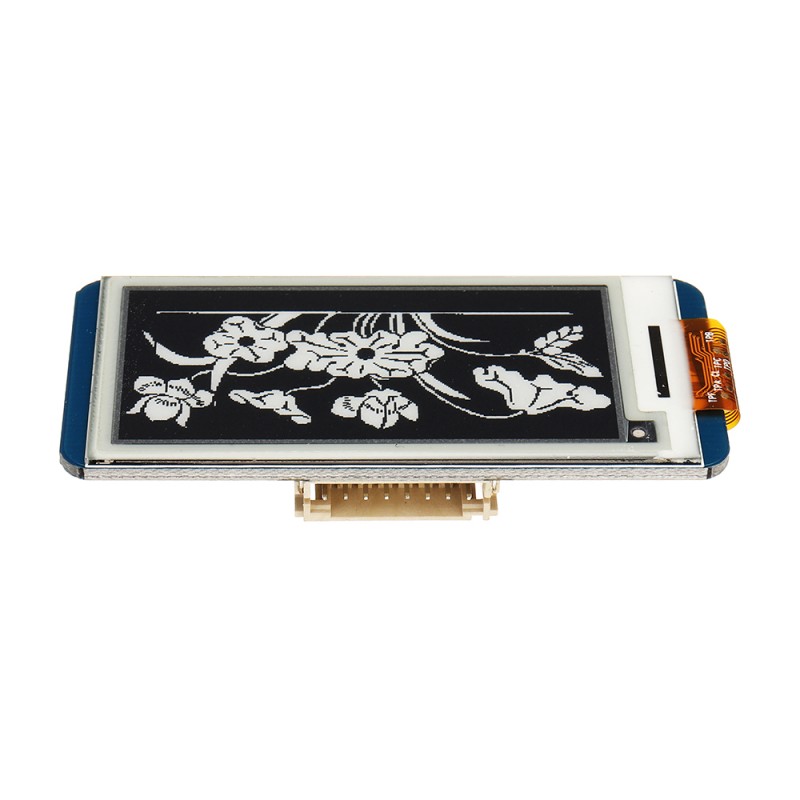

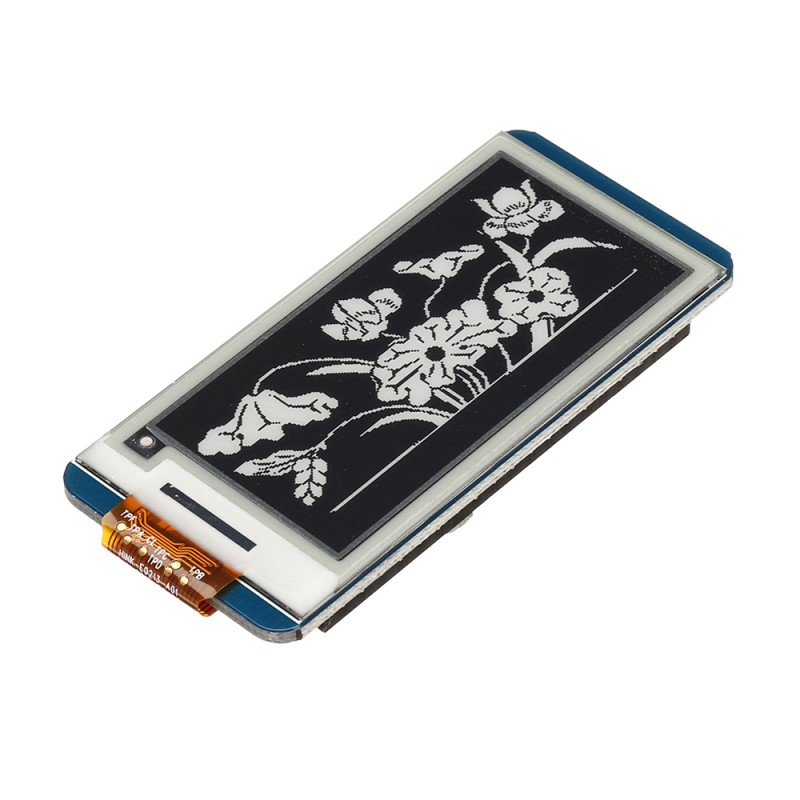

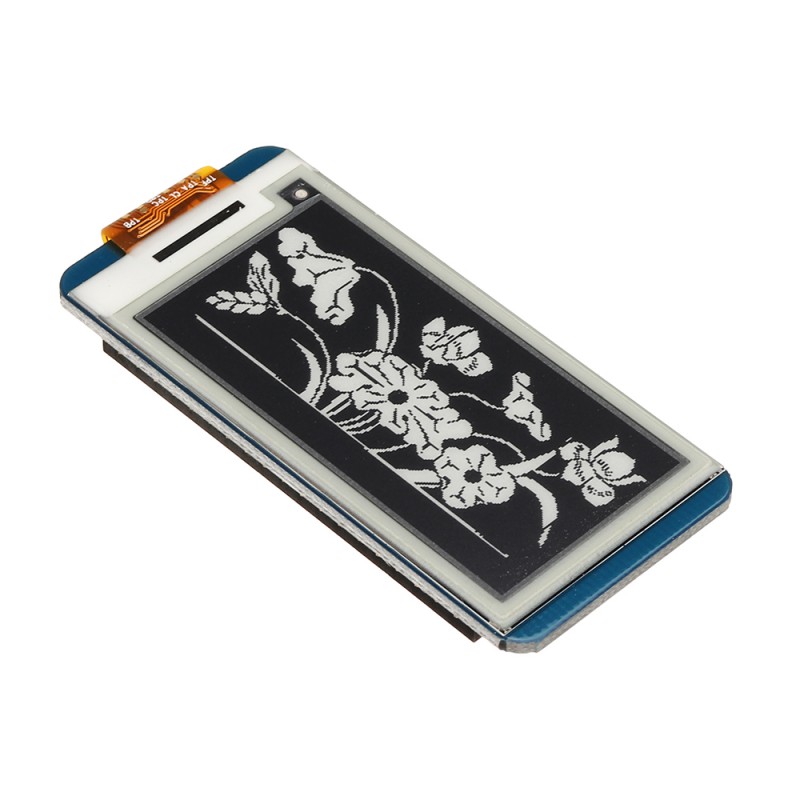

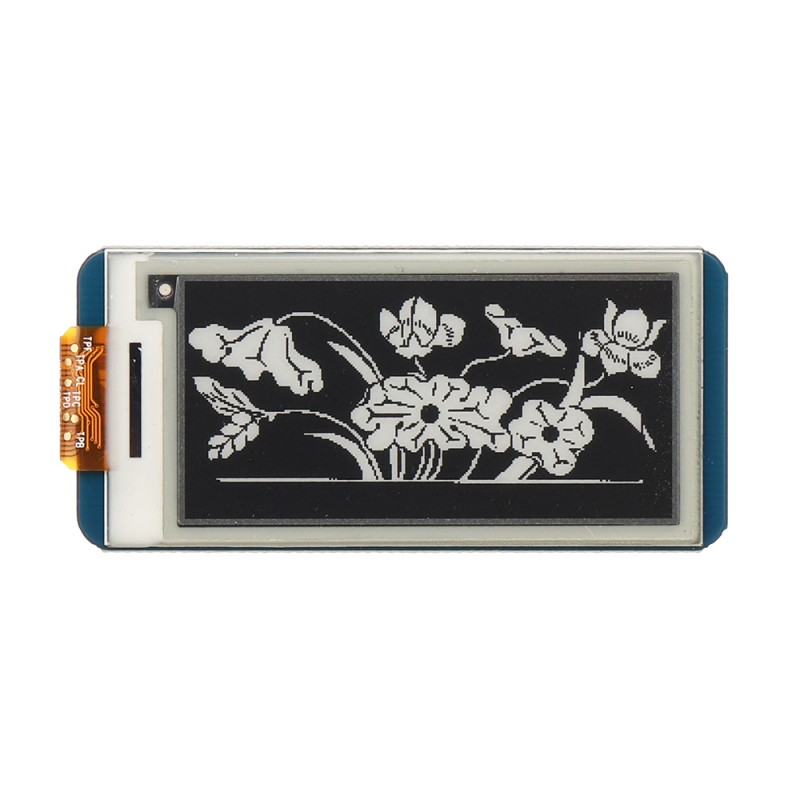

Waveshare 2.13 Inch E-ink Screen Display e-Paper Module SPI Interface Partial Refresh
- $28.71
- Ex Tax: $28.71
- Product Code: trd046
- Availability: In Stock
Product Description
Features:
No backlight required, power off can keep the last screen display for a long time
Very low power consumption, basically only consumes power when refreshing
For Raspberry Pi 2 Generation B/3 Generation B/Zero/Zero W
Reserved SPI control interface pad for easy access to main control boards such as Arduino/Nucleo
On-board level shifting chip compatible with 3.3V and 5V microcontroller interfaces
Provide a complete supporting information manual (sample programs such as Raspberry/Arduino/STM32)
Parameter:
Working voltage: 3.3V/5V
Communication interface: SPI
Dimensions: 65mm × 30.2mm
Display size: 48.55mm × 23.71mm
Dot Distance: 0.194 × 0.194
Resolution: 250 × 122
Display color: black, white
Gray level: 2
Partial refresh: 0.3s
Global refresh: 2s
Refresh power consumption: 26.4mW (typ.)
Standby power consumption: <0.017mW
Viewing angle: >170°

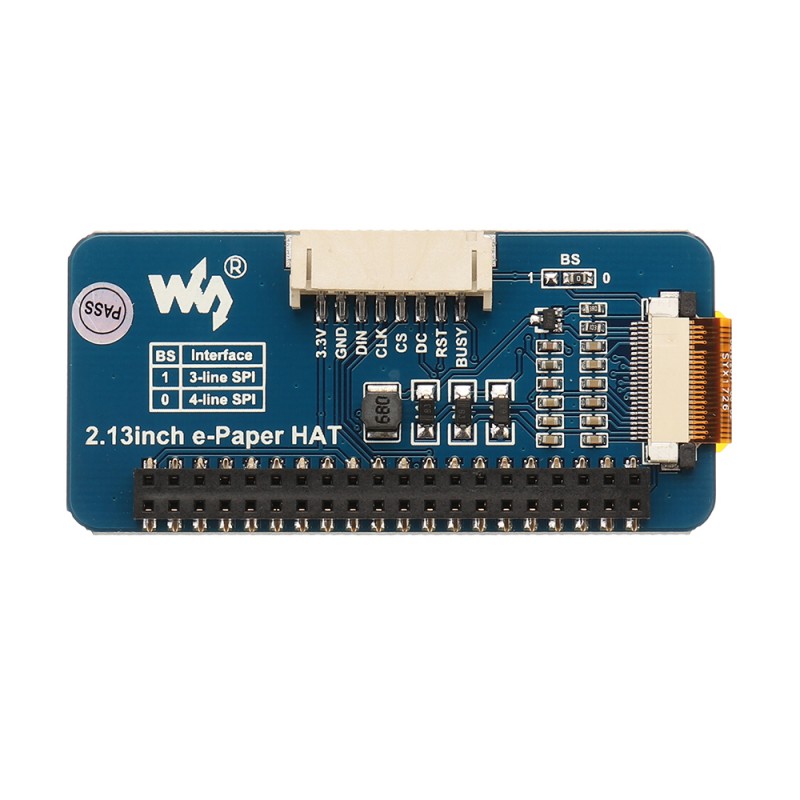

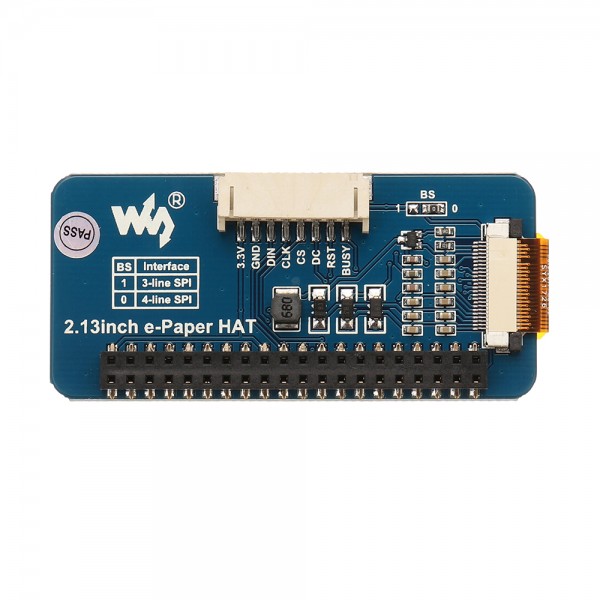

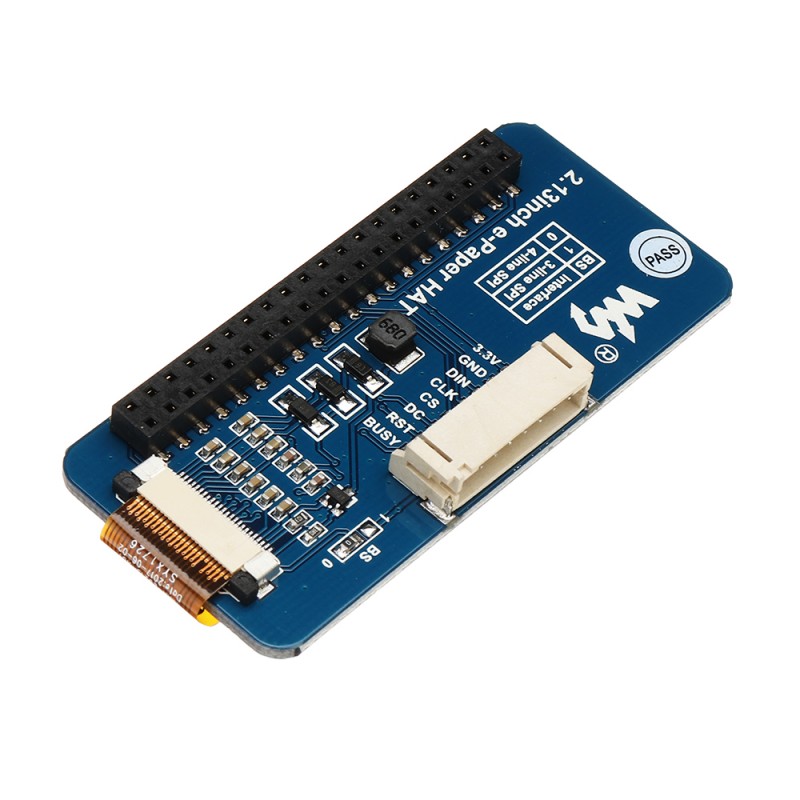

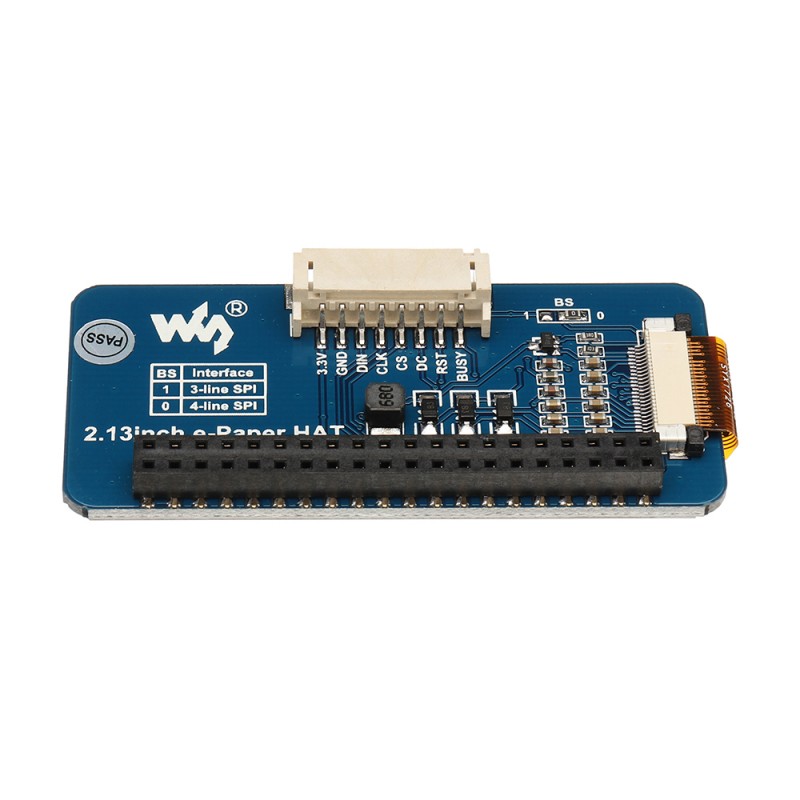

Interface Description:
VCC: 3.3V/5V
GND : GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS : SPI Chip Select Pin (Active Low)
DC: Data/command control pin (high level means data, low level means command)
RST : External reset pin (low reset)
BUSY: Busy status output pin (high level means busy)

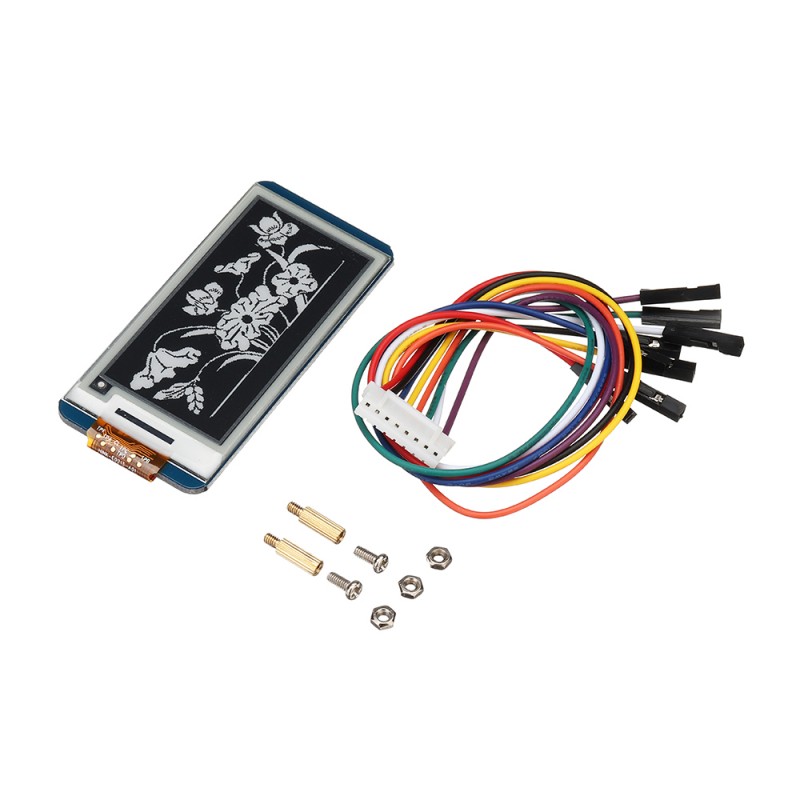

Package includes:

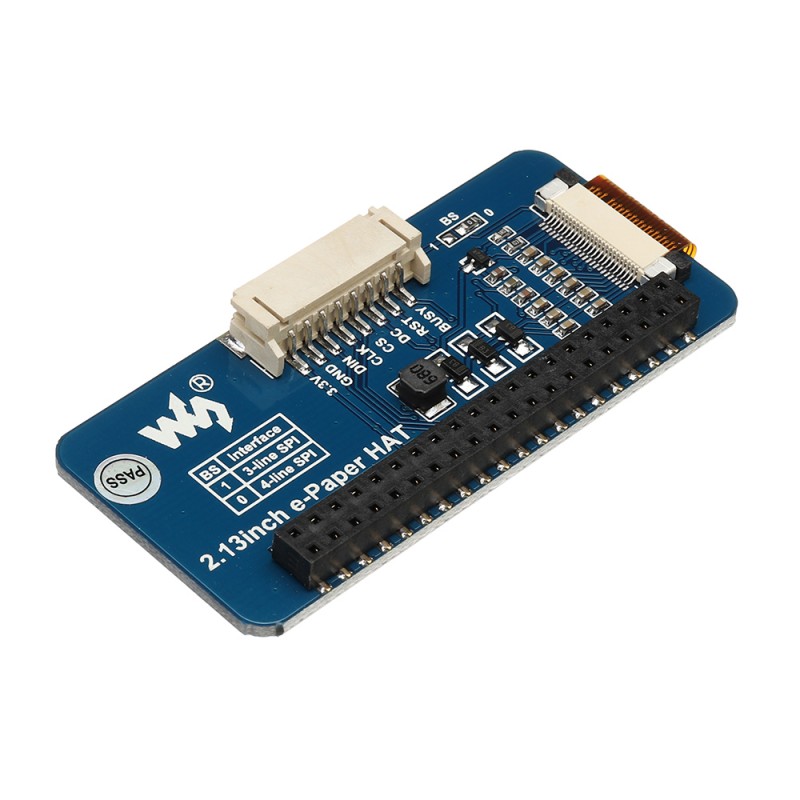

1 x 2.13inch e-Paper HAT
1 x RPi copper column package (2PCS set)

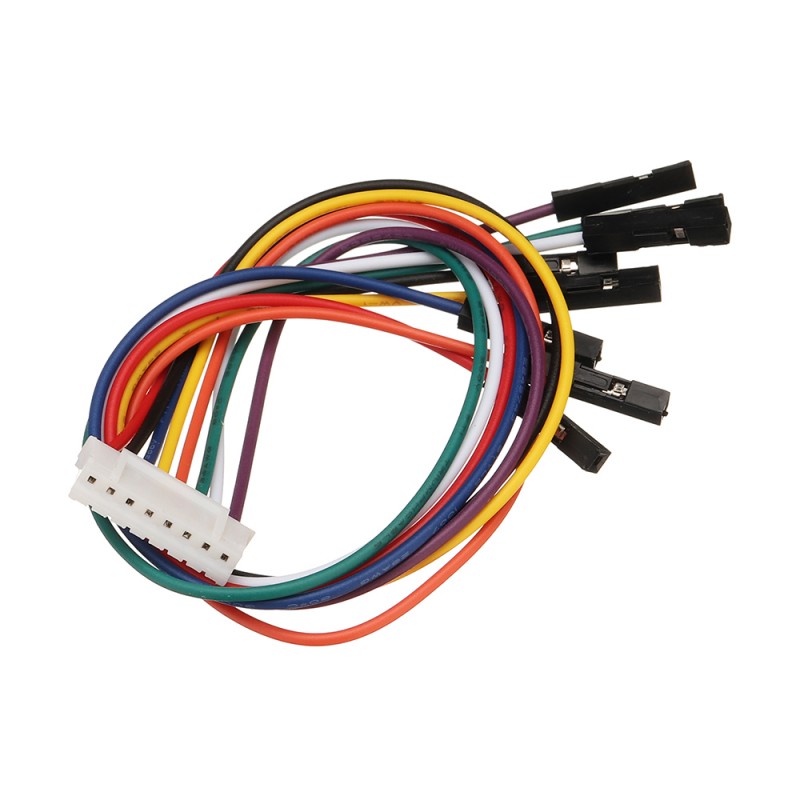

1 x PH2.0 8PIN cable 20cm
