Product Description

Overview:

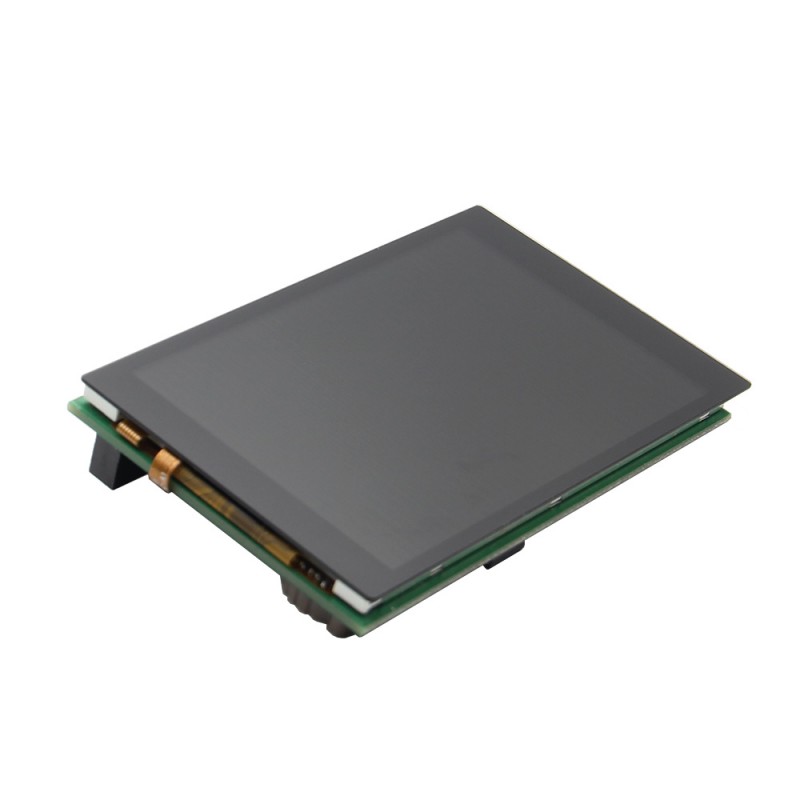

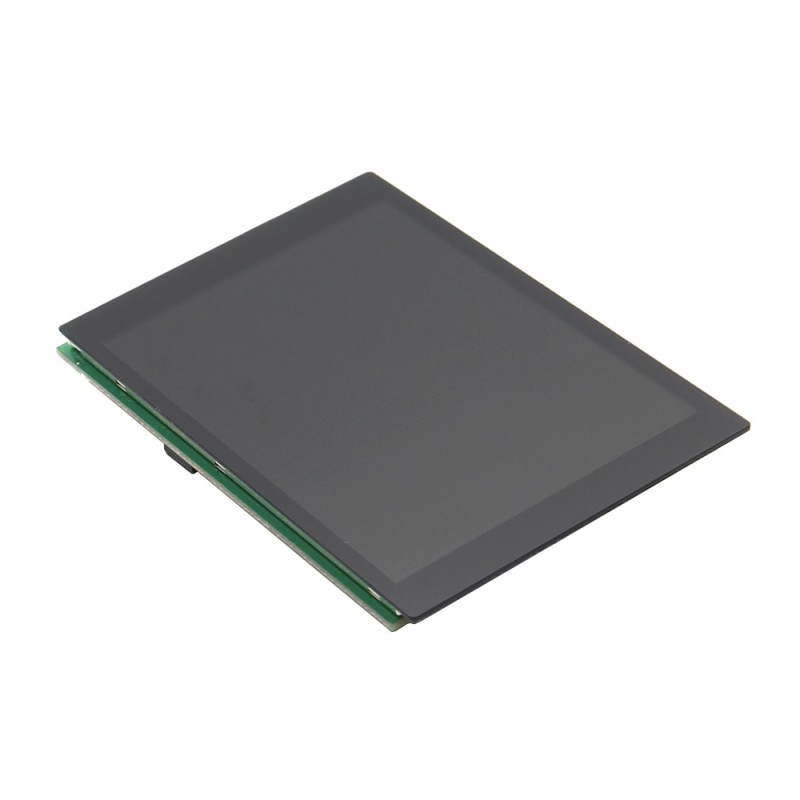

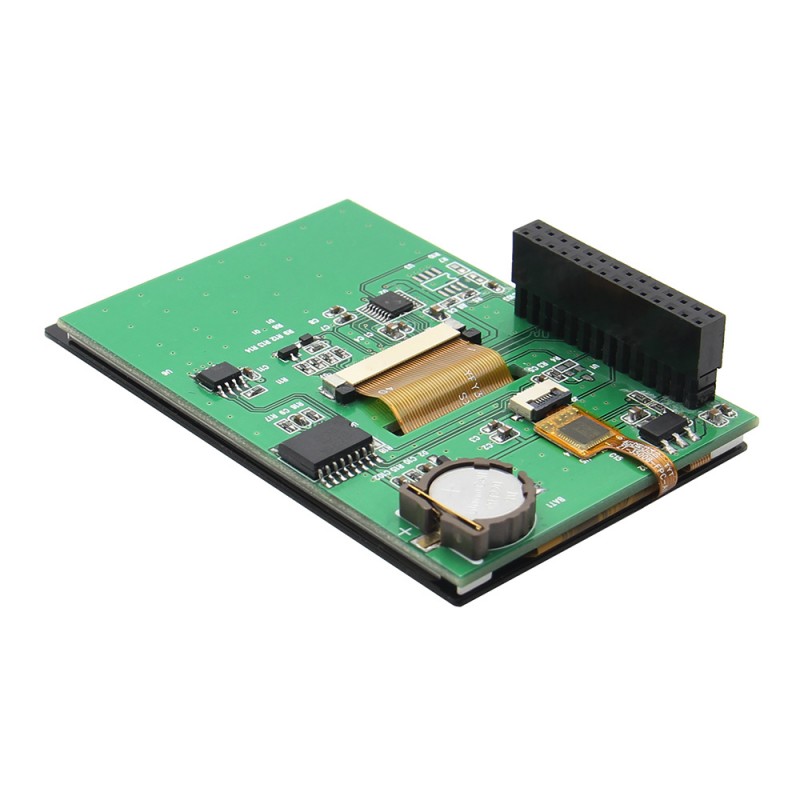

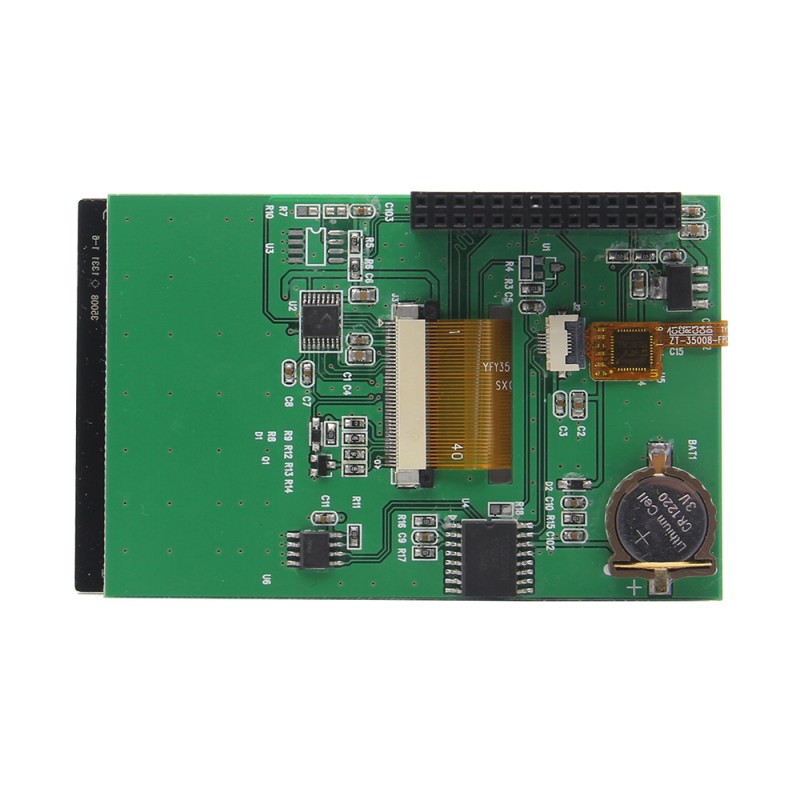

This 3.5 inch TFT with Capacitive Screen is a display module can be applied to Raspberry pi,it can be used as raspberry pi x window display terminals.It use the Raspberry pi high-speed SPI interface transfer Linux frame buffer data to the LCD module. The SPI clock can reach as high as63Mbps.The 3.5 LCD panel with this module have 16bit/pixel 320×480 high-resolution.This module equipped with high accuracy DS3231 hardware RTC unit make your Raspberry system time no longer depend on the network.The LCD module used SPI, I2C and some GPIO signal from Raspberry pi 40PIN interface.Otherresource in 40PIN interface can be defined by users.The Module have the same size as Raspberry pi and can be directly plugged on the Raspberry pi.

Features:

- 16bit/pixel, 320×480 resolution and large view angle.- with capacitive touch specifications, the software fully compatible.- Providing preset raspbian-jessie system image and a separate installation package.- Provide accurate DS3231 RTC unit to ensure that the system time is accurate.- LCD Backlight can be controlled.- Hardware and software is compatible with any version of the raspberry pi.- It have the same size as standard raspberry pi.- Reserved ID EEPROM location on board.

Hardware connection:

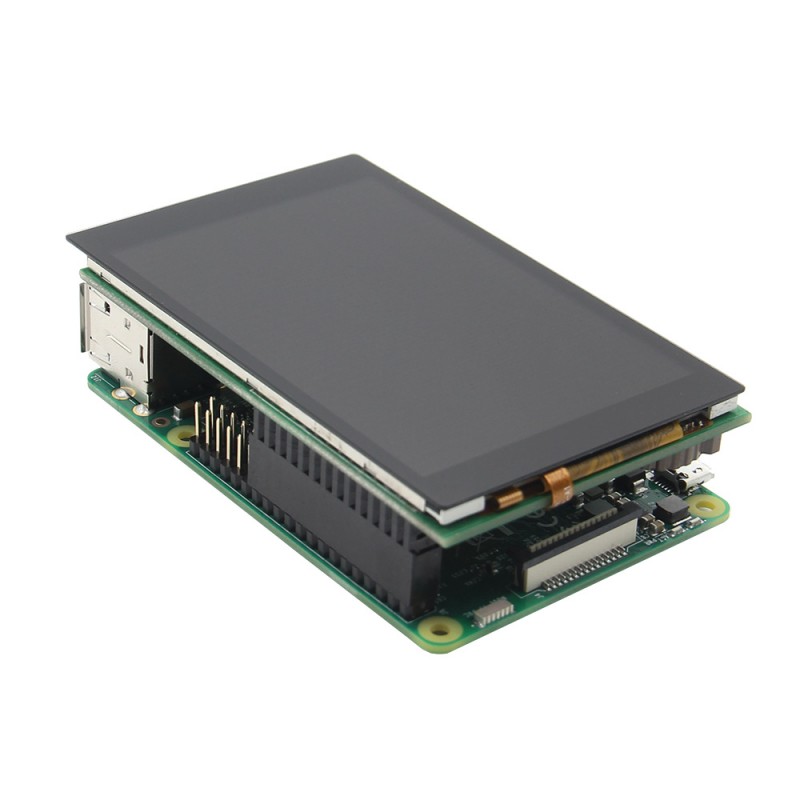

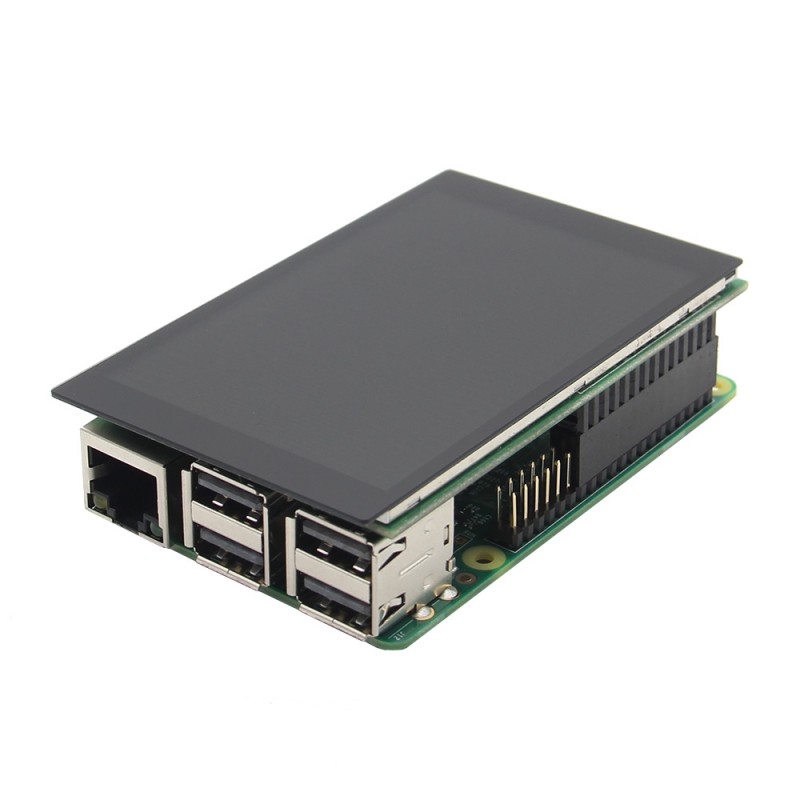

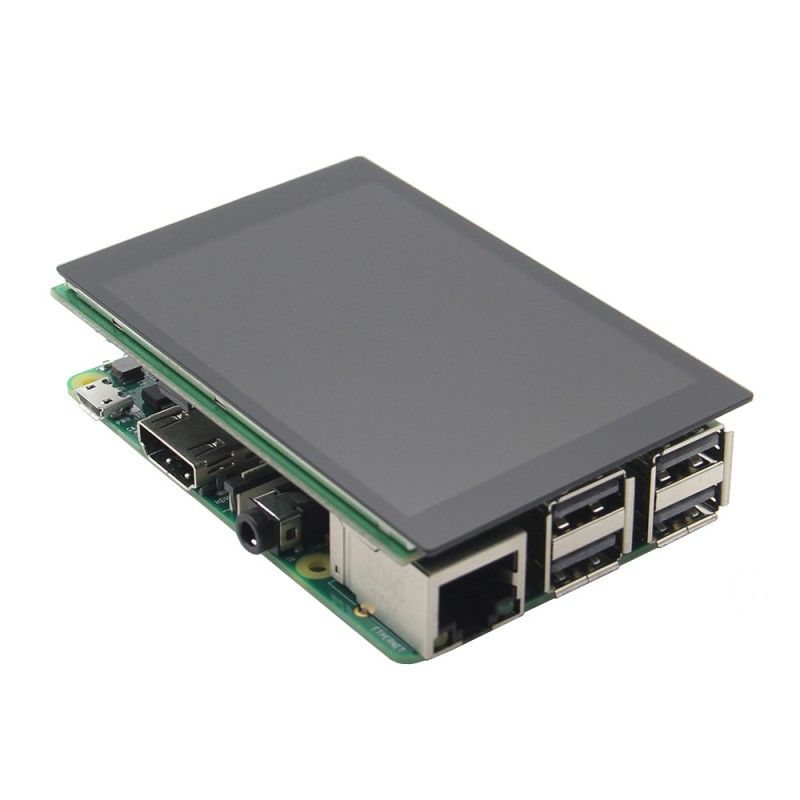

The LCD modules used 28 pins out of raspberry pi 40 pin.When installing the module attention to align the first leg of the raspberry pi and LCD module.

Software Installation: Refer to

Packing Included:

1 x 3.5 Inch Screen for Raspberry Pi
