LED Full Color 8×8 RGB Dot Matrix Screen Module
- $17.99
- Ex Tax: $17.99
- Product Code: trd192
- Availability: In Stock
Product Description
Description:

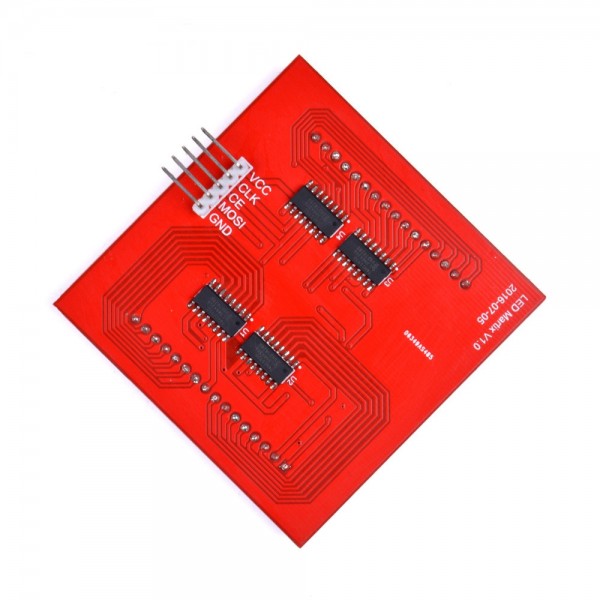

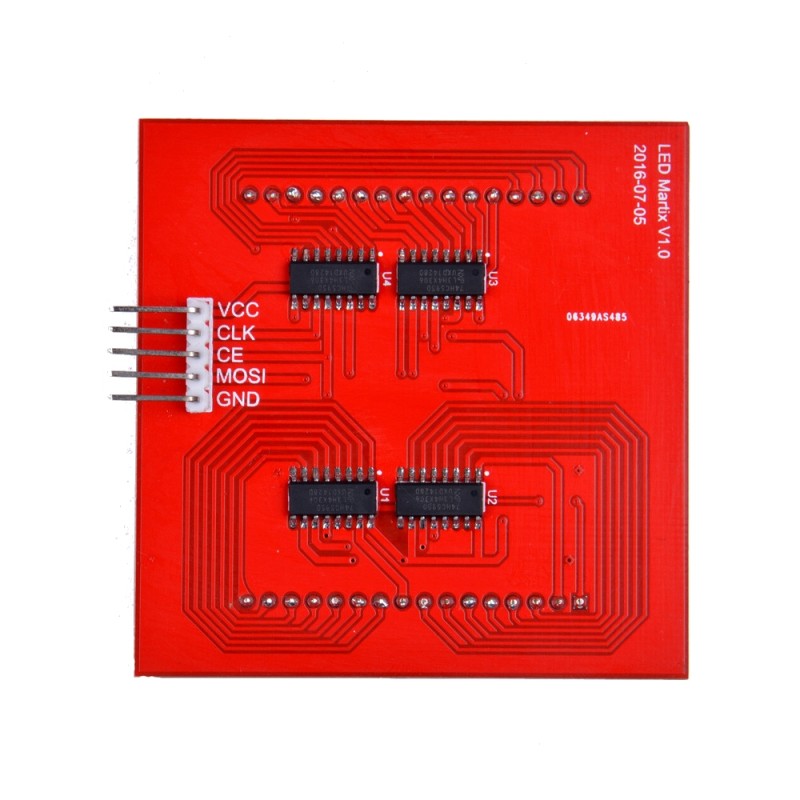

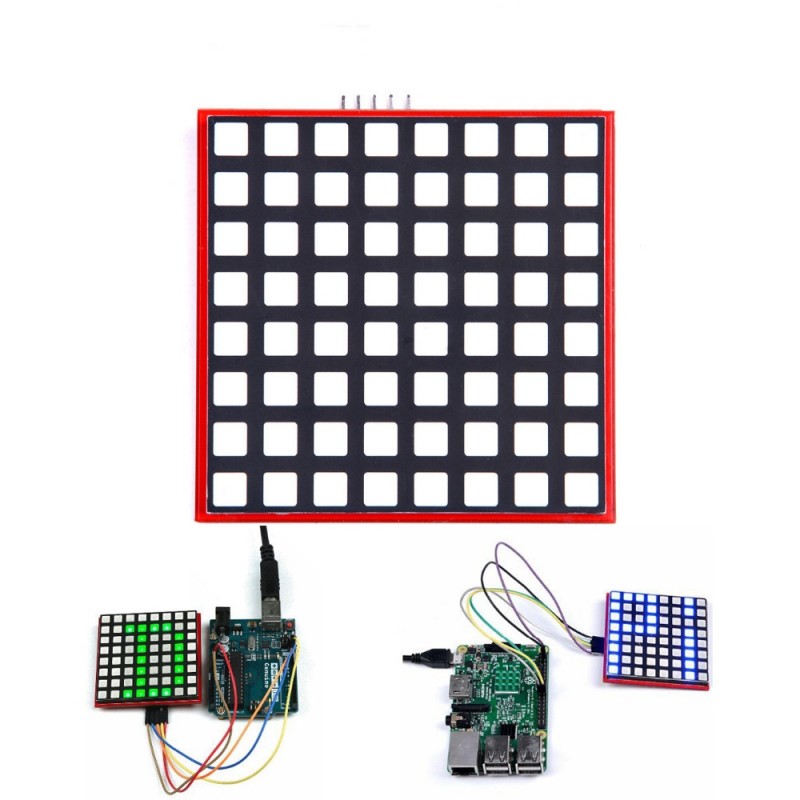

RPI-RGB-LED-Matrix is base on 74HC595 chip and it's an 8*8 dot matrix module that can be drived by Arduino board, Raspberry Pi and even STM32 or STC89C serials development board. It communicates with your development board or your chip by SPI protocol, it's very easy to setup and use. You can use it to do a lot of interesting things, such as musical backdrop, music spectrum analyzer, and even in your bicycle taillights.
Features:
1.Based on 74HC595 chip support2.Support SPI protocol3.Low power consumption4.RGB three-color combination can be a lot of bright colors
Package Included:

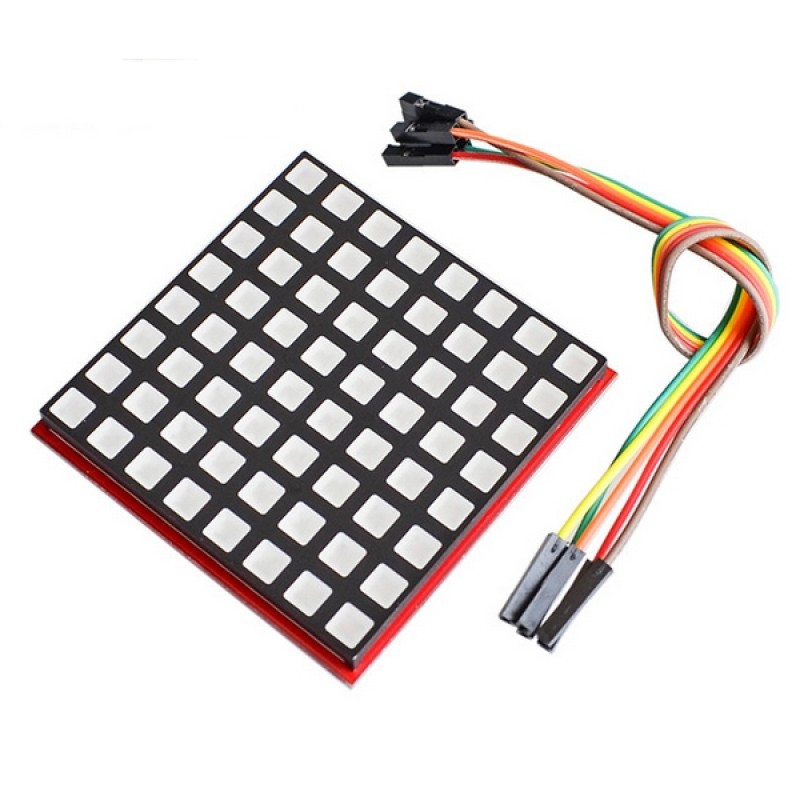

1x RPI-RGB-LED-Matrix1x Connect cable
How to connect:
| Raspeberry Pi | RPI-RGB-LED-Matrix |
| 5V | VCC |
| GND | GND |
| GPIO11(BCM) | CLK |
| GPIO8(BCM) | CE |
| GPIO10(BCM) | MOSI |
